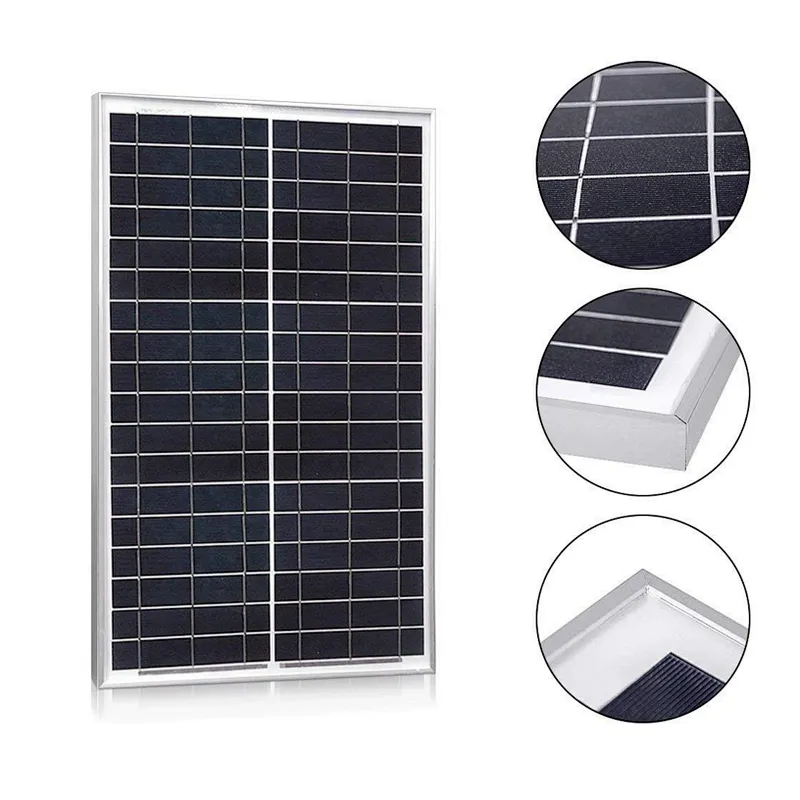

30W Poly Solar Panel
30W Poly Solar Panel
30W Poly Solar Panel
30W Poly Solar Panel
30W Poly Solar Panel

30W Poly Solar Panel

Model NO.
YH-30P
Price:
US $ 0.32-0.35 / watts
Delivery
FOB
Minimum order quantity
5000 watts
Country of Origin
China
Stock Time
7 Days
Quantity:

 Electrical Performance :

Power Output (Watt) 30W

Max. Power Voltage (Vmp) 18.60V

Max.  Power Current (Imp) 1.62A

Open  Circuit Voltage (Voc) 21.80V

Short Circuit Current (Isc) 1.74A

Numbers of Cell (PCS) 4*9

Panel Efficiency (%) 10.92%

Cell Efficiency (%) 14.48%

Temperature  Range (℃) -40℃～+85℃

TemperatureTolerance (%) +/-3%

Standard Test Conditions AM1.5 100mW/C㎡ 25’C

Maximum  System Voltage (V) 1000

Mechanical Characteristics:

FrontCover (Material/Thickness) : Low iron tempered glass/3.2mm

BlackSheet (Color) : White

CellMaterial /Dimension:Polycrystalline silicon

FrameMaterial/color : aluminium alloy/silver

JunctionBox(ProtectionDegree): IP65

SolarPanelDimension:410*670*25mm

Net Weight : 3.70KGS

  • Work Time (h)：10
  • Solar Power (W)：30W
  • Load Power (W)：30W
  • Output Voltage (V)：21V
  • Application：Commercial
  • Specification：Mini
  • Model Number：YH30
  • Brand Name：YAHONG
