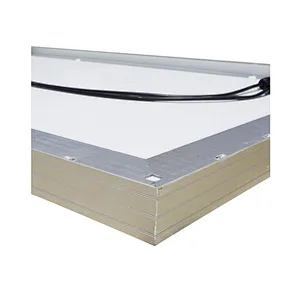

150W Poly Solar Panel
150W Poly Solar Panel
150W Poly Solar Panel
150W Poly Solar Panel
150W Poly Solar Panel
150W Poly Solar Panel
150W Poly Solar Panel

150W Poly Solar Panel

Model NO.
YH-150P
Price:
US $ 0.22-0.29 / watts
Delivery
FOB
Minimum order quantity
5000 watts
Supply Ability
250000 watts / Day
Country of Origin
China
Stock Time
7 Days
Quantity:

Electrical Performance :

 Power Output (Watt) 150W

Max. Power Voltage (Vmp) 17.80V

Max. Power Current (Imp) 8.43A

Open Circuit Voltage (Voc) 22.32V

Short Circuit Current (Isc) 8.96A

Numbers of Cell (PCS) 4*9

 PanelEfficiency(%)15.06%

Cell Efficiency (%) 17.46%

Temperature Range (℃) -40℃～+85℃

Output Tolerance (%) +/-3%

Standard Test Conditions AM1.5 100mW/C㎡ 25’C

Maximum System Voltage (V) 1000

Mechanical Characteristics:

FrontCover (Material/Thickness) : Low iron tempered glass/3.2mm

BlackSheet (color) : White

CellMaterial /Dimension:Polycrystalline silicon/156x156mm

 Frame Material/Color : aluminium alloy/silver

Junction Box(protection degree): IP65

Solar Panel Dimension: 1480*680*30mm

Net Weight : 12.00KGS

  • Work Time (h)：10
  • Solar Power (W)：150W
  • Load Power (W)：150W
  • Output Voltage (V)：22V
  • Application：Commercial
  • Specification：Normal
  • Model Number：YH150P
  • Brand Name：YHHONG
