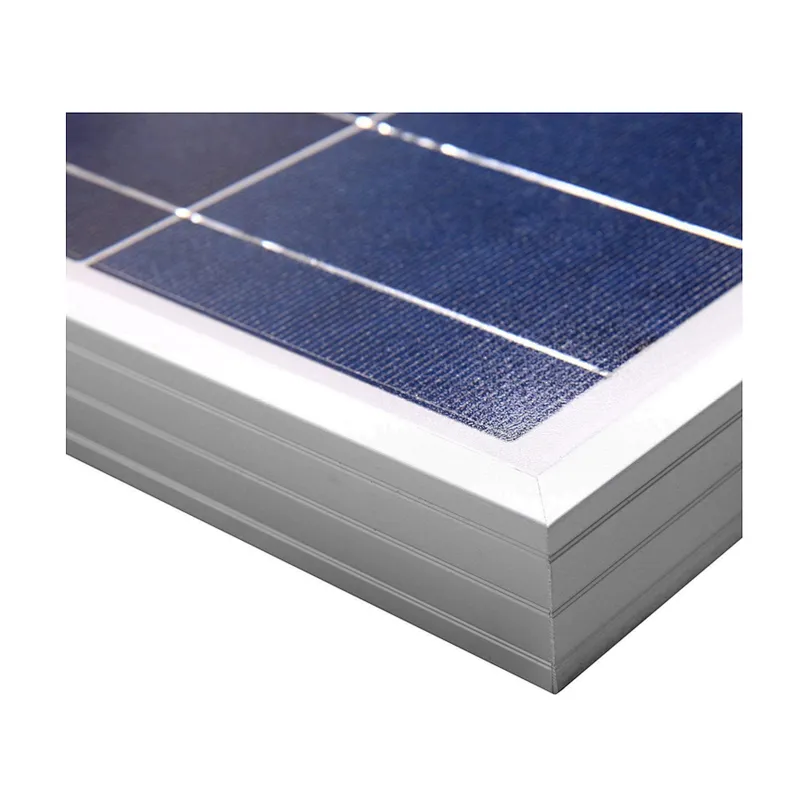

160W Poly Solar Panel
160W Poly Solar Panel
160W Poly Solar Panel
160W Poly Solar Panel
160W Poly Solar Panel
160W Poly Solar Panel
160W Poly Solar Panel

160W Poly Solar Panel

Model NO.
YH-160P
Price:
US $ 0.22-0.29 / watts
Delivery
FOB
Minimum order quantity
5000 watts
Supply Ability
250000 watts / Day
Country of Origin
China
Stock Time
7 Days
Quantity:

Electrical Performance :

Power Output (Watt) 160W

Max. Power Voltage (Vmp) 18.21V

Max. Power Current (Imp) 8.79A

Open Circuit Voltage (Voc) 22.39V

Short Circuit Current (Isc) 9.53A

Numbers of Cell (PCS) 4*9

Panel Efficiency(%) 16.06%

Cell Efficiency (%) 18.63%

Temperature  Range (℃) -40℃～+85℃

Output Tolerance (%) +/-3%

Standard Test Conditions AM1.5 100mW/C㎡ 25’C

Maximum System Voltage (V) 1000

Mechanical Characteristics:

FrontCover (Material/Thickness) : Low iron tempered glass/3.2mm

BlackSheet (color) : White

CellMaterial /Dimension:Polycrystalline silicon/156x156mm

FrameMaterial/Color : aluminium alloy/silver

JunctionBox(protection degree): IP65

SolarPanelDimension:1480*680*30mm

Net Weight : 12.00KGS

  • Work Time (h)：10
  • Solar Power (W)：160W
  • Load Power (W)：160W
  • Output Voltage (V)：18V
  • Application：Home
  • Specification：Normal
  • Model Number：YH160P
  • Brand Name：YAHONG
